78-0260
Category:
Soil Strength (Triaxial), Data Logging, Software and Electronic Instrumentation, Load Measurement, Soils, Laboratory Equipment
Sub Category:
Measurement instrumentation, Instrumentation for Triaxial testing, Instrumentation for Direct and Residual Shear Testing, Soil Strength (Triaxial), Triaxial Load Frames, Direct Shear and Vane Tests, Load Measurement, Proving Rings
Product Group:
Clamped Boss Load Rings, Digital Tritest 50 Load Frame, Load Measurement, Load Measurement, Proving Rings, Load Measurement, Direct/Residual Shear Apparatus

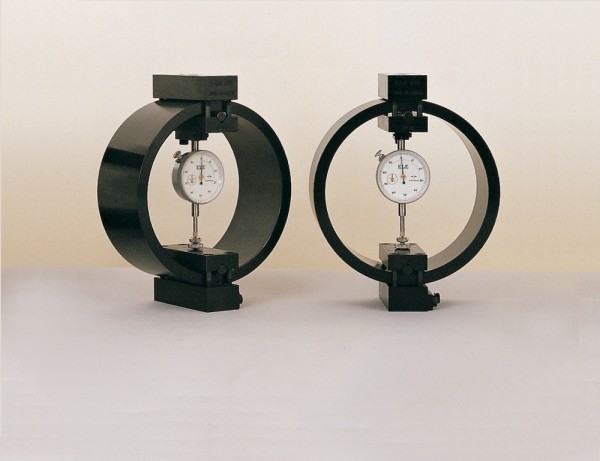

| Description | Load ring - 4.5 kN |
| Load device type | Load ring |
| Force Capacity, kN | 4.5 |
| Weight, lbs | 9.25 |
| Capacity: kN, kgf, lbf | 4.5, 450, 1000 |
| Typical Design sensitivity: N/div, kgf/div, lbf/div | 3.0, 0.30, 0.66 |
| Overall height mm | 248 |
| Approx weight kg | 3.5 |
| Capacity - lbf | 1,000 |
| Capacity - kN | 4.5 |
| Capacity - kgf | 450 |
| Typical Design Sensitivity - lbf/div | 0.66 |
| Typical Design Sensitivity - kN/div | 3 |
| Typical Design Sensitivity - Kgf/div | 0.3 |
| Overall Height | 9.76” (248 mm) |
| Approx Weight | 7.7 lbs.(3.5 kg) |
