78-0160
Category:
Direct Shear and Vane Tests, Load Measurement, Soils, Laboratory Equipment
Sub Category:
Soil Strength (Triaxial), Triaxial Load Frames, Direct Shear and Vane Tests, Load Measurement, Proving Rings
Product Group:
Digital Tritest 50 Load Frame, Proving Rings, Measurement of Load (Shear Stress), Clamped Boss Load Rings, Direct/Residual Shear Apparatus

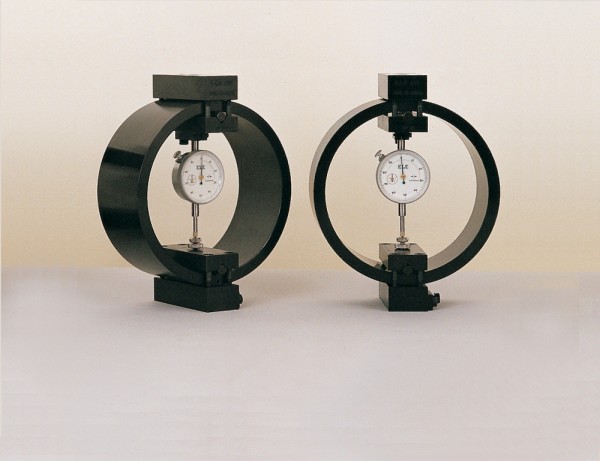

| Description | Load ring - 3 kN |
| Force Capacity, kN | 3 |
| Weight, lbs | 9.25 |
| BS 1377 | Yes |
| ASTM D3080 | Yes |
| Capacity: kN, kgf, lbf | 3.0, 300, 650 |
| Typical Design sensitivity: N/div, kgf/div, lbf/div | 2.0, 0.20, 0.43 |
| Overall height mm | 248 |
| Approx weight kg | 3.3 |
| Capacity - lbf | 1,000 |
| Capacity - kN | 3 |
| Capacity - kgf | 300 |
| Typical Design Sensitivity - lbf/div | 0.43 |
| Typical Design Sensitivity - kN/div | 2 |
| Typical Design Sensitivity - Kgf/div | 0.2 |
| Overall Height | 9.76” (248 mm) |
| Approx Weight | 7.3 lbs.(3.3 kg) |
