78-0460
Category:
Compaction & CBR Test Equipment, Load Measurement, Soils, Laboratory Equipment
Sub Category:
California Bearing Ratio, Soil Strength (Triaxial), Triaxial Load Frames, Load Measurement, Proving Rings
Product Group:
Clamped Boss Load Rings, Digital Tritest 50 Load Frame, Proving Rings, Force measurement

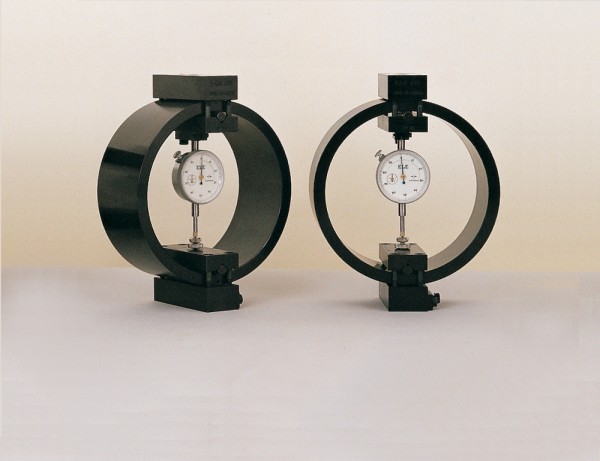

| Description | Load ring - 10 kN |
| Value of CBR % | 8% to 40% |
| Weight, lbs | 10.54 |
| Force Capacity, kN | 10 |
| Capacity: kN, kgf, lbf | 10.0, 1000, 2250 |
| Typical Design sensitivity: N/div, kgf/div, lbf/div | 7.7, 0.77, 1.73 |
| Overall height mm | 248 |
| Approx weight kg | 4.6 |
| Capacity | 10 kN |
| Value of CBR | 8% to 40% |
| Capacity - lbf | 2,250 |
| Capacity - kN | 10 |
| Capacity - kgf | 1,000 |
| Typical Design Sensitivity - lbf/div | 1.73 |
| Typical Design Sensitivity - kN/div | 7.7 |
| Typical Design Sensitivity - Kgf/div | 0.77 |
| Overall Height | 9.76” (248 mm) |
| Approx Weight | 10.1 lbs.(4.6 kg) |
