78-0060
Category:
Compaction & CBR Test Equipment, Direct Shear and Vane Tests, Load Measurement, Soils, Laboratory Equipment
Sub Category:
California Bearing Ratio, Soil Strength (Triaxial), Triaxial Load Frames, Direct Shear and Vane Tests, Load Measurement, Proving Rings
Product Group:
Clamped Boss Load Rings, Digital Tritest 50 Load Frame, Proving Rings, Force measurement, Measurement of Load (Shear Stress), Direct/Residual Shear Apparatus

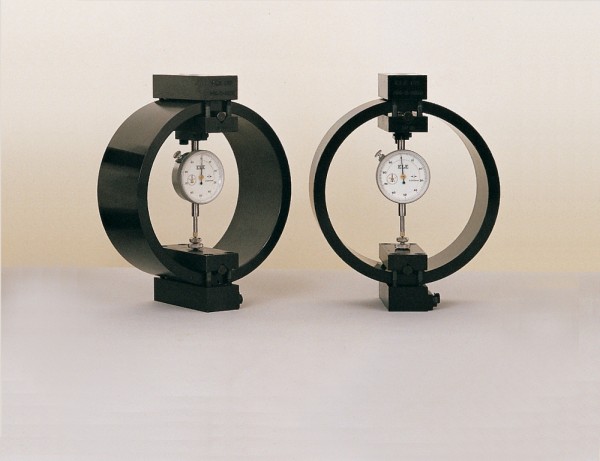

| Description | Load ring - 2 kN |
| Force Capacity, kN | 2 |
| Value of CBR % | Up to 8% |
| Capacity, lbf | 450 |
| BS 1377 | Yes |
| ASTM D3080 | Yes |
| Capacity kN | 2.0 |
| Capacity: kN, kgf, lbf | 2.0, 200, 450 |
| Typical Design sensitivity: N/div, kgf/div, lbf/div | 1.3, 0.13, 0.30 |
| Overall height mm | 248 |
| Approx weight kg | 3.2 |
| Capacity - lbf | 450 |
| Capacity - kN | 2 |
| Capacity - kgf | 200 |
| Typical Design Sensitivity - lbf/div | 0.3 |
| Typical Design Sensitivity - kN/div | 1.3 |
| Typical Design Sensitivity - Kgf/div | 0.13 |
| Overall Height | 9.76” (248 mm) |
| Approx Weight | 7 lbs. (3.2 kg) |
