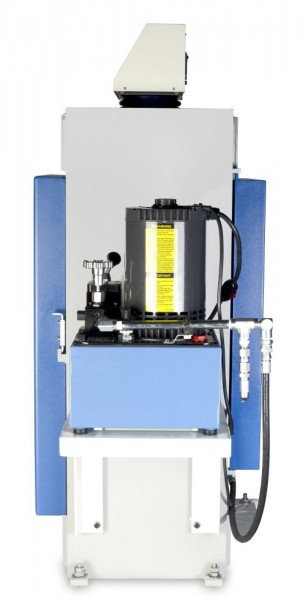

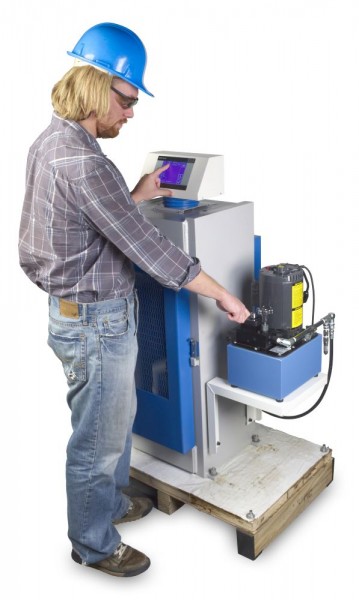

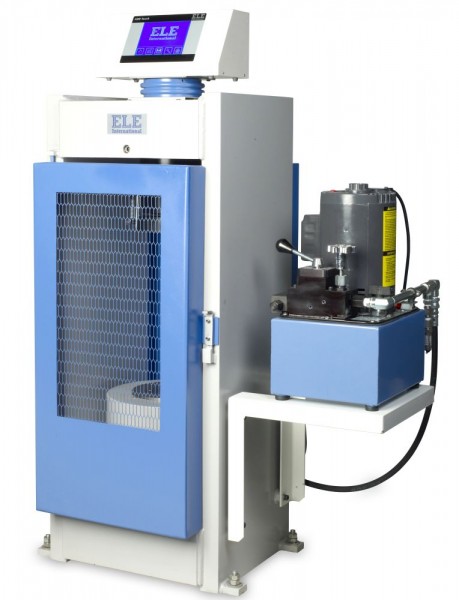

Accu-Tek Touch 500 Series 220V/50Hz

Specification

• Capacity: 500,000 lbf (2,224 kN)
• Vertical Clearance: 19.62" (498 mm) without upper platen assembly from top of lower block
• Horizontal Clearance: 14" (355 mm) between uprights
• Ram: 8.75" (222 mm) diameter; 2.5" (64 mm) stroke with overtravel limit switch protection
• Pump: 3 h.p (0.7 kw) electro-hydraulic pump mounted within reservoir with overload protection
• Hydraulic Controls: Pressure compensated flow control valve with 4-position control lever and adjustable flow valve. Pump Start/Stop Push-buttons.
• Lower Platen: 12" w x 16" d x 2" h (305 x 406 x 50 mm) with scribed concentric circles and lines
• Display System: 5.7" (145 mm) touch screen display, incorporating full key pad (QWERTY type); pace deviation bargraph; automatic stress calculation; 2 GB of internal memory for storing thousands of test results; download data to PC via USB or to printer via RS-232 interface.
• Range: 5,000 to 500,000 lbf (22.4 to 2,224 kN)
• Accuracy: Factory calibrated to within 1.0% of reading - from 1% to 100% of machine capacity
• Dimensions: 31.25" w x 21" d x 50.75" h (794 x 533 x 1,289 mm)
• Weight: Net 1,700lbs (771 kg)
