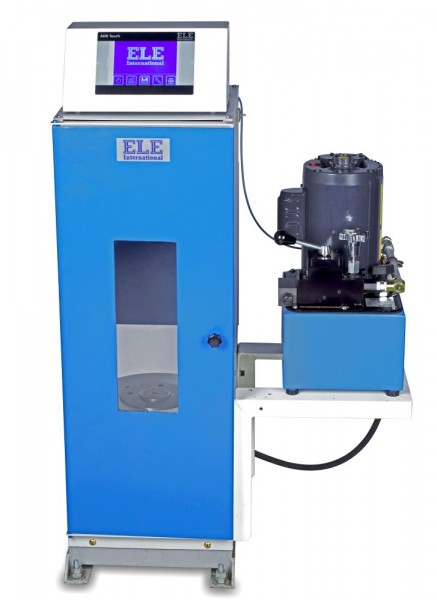

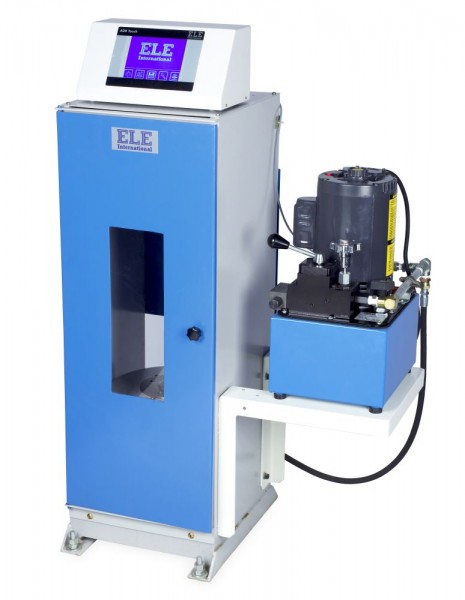

Accu-Tek Touch 350 Series 220V/60Hz

Specification

• Capacity: 350,000 lbf (1,555 kN)
• Vertical Clearance: 19.75" (502 mm) without upper platen assembly from top of lower block
• Horizontal Clearance: 11.5" (292 mm) between uprights
• Ram: 7.716" (196 mm) diameter; 2" (50 mm) stroke
• Pump: 2 h.p (0.7 kw) electro-hydraulic pump mounted within reservoir with overload protection
• Controls: Pump-mounted pressure compensated flow control valve with 4-position control lever and adjustable flow valve. Pump on/off switch.
• Lower Platen: 10" w x 14" d x 1" h (254 x 355 x 25.4 mm)
• Display System: 5.7" (145 mm) touch screen display, incorporating full key pad (QWERTY type); pace deviation bargraph; automatic stress calculation; 2 GB of internal memory for storing thousands of test results; download data to PC via USB or to printer via RS-232 interface.
• Range: 3,500 to 350,000 lbf (15.5 to 1,555 kN)
• Accuracy: Factory calibrated to within 1.0% of reading - from 1% to 100% of machine capacity.
• Dimensions: 27” w. x 18” d. x 44 ” h. (686 x 45 7 x 1,11 8 mm).
• Weight: Net 850 lbs. (385 kg).
