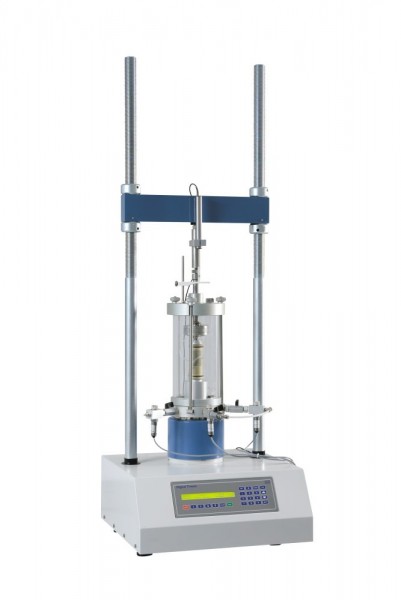

Specification

  • Capacity: 11 ,200 lbf. (50 kN).
  • Speed Range: English mode: 0.000001 to 0.399999 in/min.Metric mode: 0.00001 to 9.99999 mm/min.
  • Rapid Approach Speed: 1.0 in/min. (25 mm/min.).
  • Platen Travel: 3.9” (100 mm); limit switch protection.
  • Platen Diameter: 5.2" (133mm).
  • Vertical Clearance: 35 .8” (910 mm) maximum; 12 ” (305 mm) minimum.
  • Horizontal Clearance: 14 .3” (364 mm).
  • Serial Interface: RS232 C; programmable baud rate and protocol.
  • Overall Dimensions: 19.7” w. x 19.7” d. x 57.8” h. (500 x 500 x 1,470 mm).
  • Weight: Net 220 lbs. (100 kg); Shpg. 300 lbs. (136 kg).

Accessories and Spares/Consumables

Type Product Name Product Code Standard Code
Accessories 2 Channel Digital Readout, English 27-1108/02 NA Visit Page
Accessories 2 Channel Digital Readout, Metric 27-1109/02 NA Visit Page
Accessories 50kN Clamped Boss Load Ring 78-0860 NA Visit Page
Accessories Adaptor kit, to perform CBR on the Tritest 50 load frame 25-3518/10 NA Visit Page
Accessories Clamped Boss Load Ring - 10.0 kN 78-0460 NA Visit Page
Accessories Clamped Boss Load Ring - 2.0 kN 78-0060 NA Visit Page
Accessories Clamped Boss Load Ring - 28.0 kN 78-0760 NA Visit Page
Accessories Clamped Boss Load Ring - 3.0 kN 78-0160 NA Visit Page
Accessories Clamped Boss Load Ring - 4.5 kN 78-0260 NA Visit Page
Accessories Digital Proving Ring, 1,000 lbs (4.5 kN) 78-0264 NA Visit Page
Accessories Digital Proving Ring, 11,200 lbs (50.0 kN) 78-0864 NA Visit Page
Accessories Digital Proving Ring, 450 lbs (2.0 kN) 78-0064 NA Visit Page
Accessories Digital Proving Ring, 6,000 lbs (28.0 kN) 78-0764 NA Visit Page

110V, 50/60 Hz, 1Ph, 300 Watts.
See Data Acquisition section for electronic load and strain measurement options.
