| Type | Product Name | Product Code | Standard Code | |
|---|---|---|---|---|
| Accessories | 16 Ton Weight Set | 25-0544 | NA | Visit Page |
| Accessories | 2.416" Stainless Steel Consolidation Cell | 25-0489 | NA | Visit Page |
| Accessories | 2.5" Stainless Steel Consolidation Cell | 25-0490 | NA | Visit Page |
| Accessories | 50mm Stainless Steel Consolidation Cell | 25-0446 | NA | Visit Page |
| Accessories | 75mm Stainless Steel Consolidation Cell | 25-0467 | NA | Visit Page |
| Accessories | Electronic Digital Indicator, 0.600"/15 mm range | 88-4210 | NA | Visit Page |
| Accessories | Floor Mounting Stand. | 25-0429 | NA | Visit Page |
| Accessories | Mechanical Dial Indicator - 0.4" Range | 88-4070 | NA | Visit Page |
| Accessories | Mechanical Dial Indicator - 1.0" Range Counter Clockwise Movement | 88-4120 | NA | Visit Page |
| Accessories | Mechanical Dial Indicator - 10 mm Range | 88-4080 | NA | Visit Page |
| Accessories | Mechanical Dial Indicator - 25 mm Range Counter Clockwise Movement | 88-4130 | NA | Visit Page |
| Accessories | Set of Weights 100Kg Total Weight. | 25-0408 | NA | Visit Page |
| Accessories | Weight Set A | 25-0535 | NA | Visit Page |
| Accessories | Weight Set B | 25-0537 | NA | Visit Page |
• High capacity – 8800 kPa on 50 mm diameter specimens using 11:1 beam ratio
• Triple beam ratio, 9:1, 10:1, 11:1
• Compact unit ensures maximum space saving

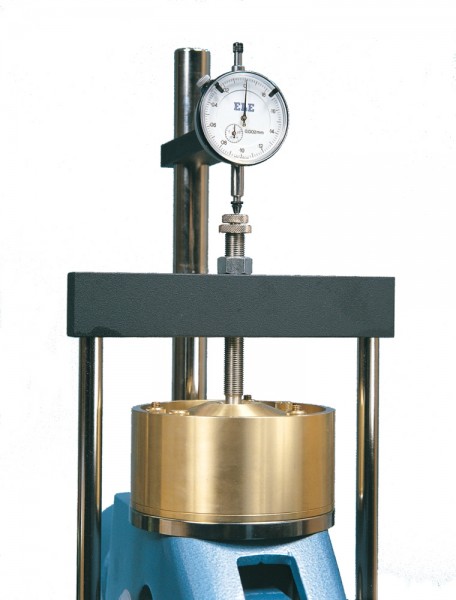

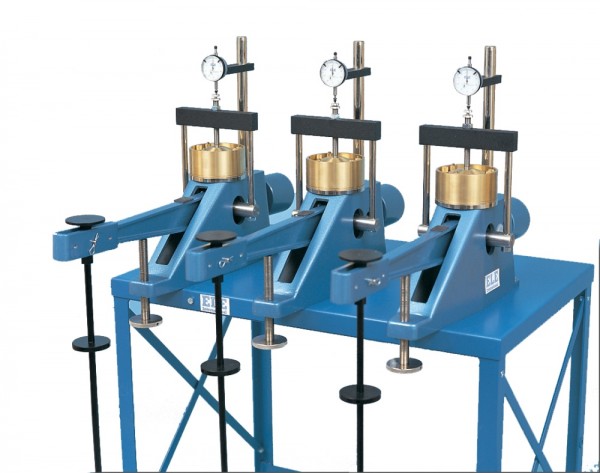

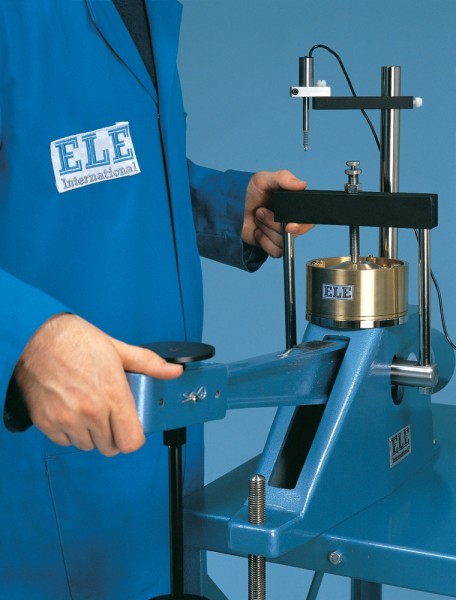

The ELE Oedometer is rigidly constructed to ensure minimum frame distortion. The frame is designed to load the specimen through a yoke assembly and one of three alternative beam ratios. The beam is fitted with a counterbalance weight and beam support jack. The cell platform will accept the complete range of ELE consolidation cells and is fitted with a central spigot to ensure accurate centring of the cell under the loading yoke. Dimensions without hanger 711 x 203 x 508 mm (l x w x h). Weight 24 kg.
PLEASE NOTE: 25-0402 does not come with a mounting stand, cell or a transducer
Supplied without dial gauge and weights.
