Specification

  • Application: High pressure
  • Specimen Dia: 50 mm
  • Specimen area: 1963 mm²
  • Beam ratio: 10:1
  • Load kg: 1
  • Stress: 50 kPa
  • Typical max stress: 8 MPa
  • Stress for 1 kg m²: 50 kPa
  • Application: High Pressure
  • Specimen Diameter: 50 mm
  • Specimen Area: 1963 mm²
  • Beam Ratio: 10:01
  • Load: 1 kg
  • Stress: 50 kPa
  • Typical Maximum Stress: 8 MPa
  • Stress for 1 kg: 50 kPa

Accessories and Spares/Consumables

Type Product Name Product Code Standard Code
Spare/Consumable 50mm Dia Upper and Lower Porous Stones for Use on EL25-0455 Series Cell. 25-0455/13 NA Visit Page
Spare/Consumable Cutting Ring 50mm Cell. 25-0458 NA Visit Page

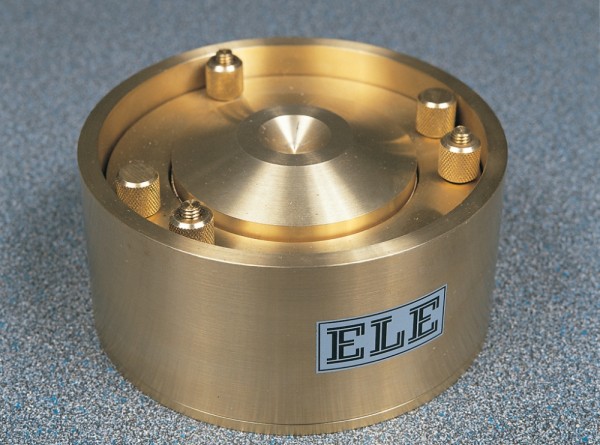

- 50 mm dia samples

- Integral water reservoir

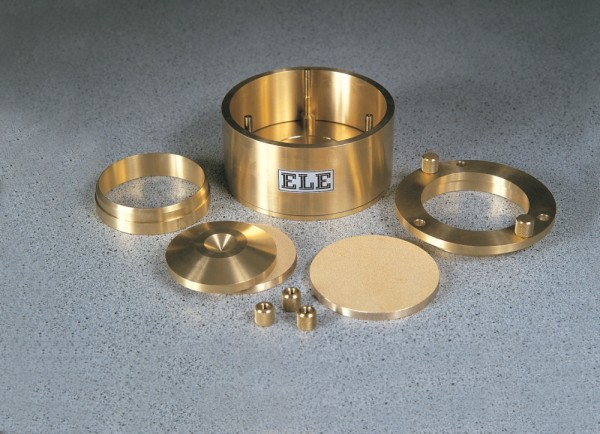

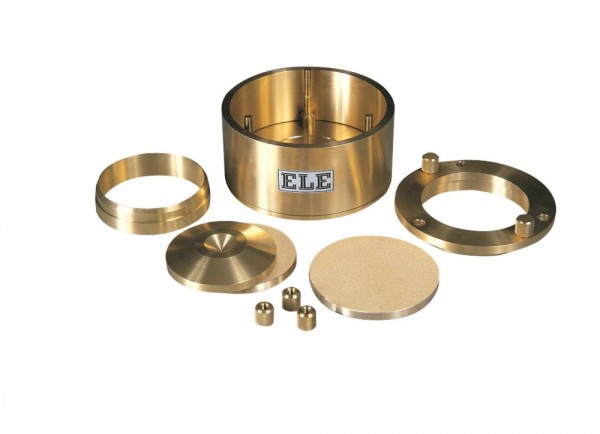

- Supplied with upper and lower porous disc and cutting ring

- Manufactured from corrosion resistant materials

- Maximum working stress 8 mpa
