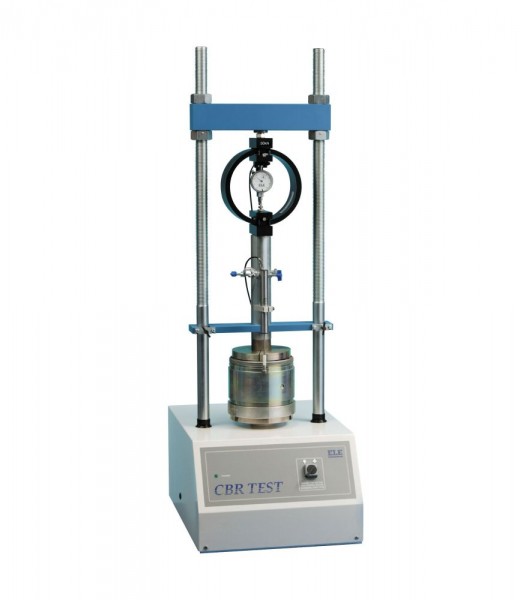

Specification

  • Capacity: 11 ,200 lbf. (50 kN).
  • Horizontal Clearance: 10” (255 mm).
  • Vertical Clearance: 31 .5” (800 mm) maximum.
  • Platen: 5.24 ” (133 mm) diam.
  • Platen Travel: 4.13 ” (105 mm).
  • Amps: 4
  • Dimensions: 15 .75” w. x 21 .65” d. x 48” h. (400 x 550 x 1,220 mm).
  • Weight: Net 269 lbs. (122 kg).

Accessories and Spares/Consumables

Type Product Name Product Code Standard Code
Accessories 50kN Clamped Boss Load Ring 78-0860 NA Visit Page
Accessories 50kN S-type Load Cell 27-1559 NA Visit Page
Accessories ASTM Cbr Mould Complete with Collar & Perferated Base 24-9228 NA Visit Page
Accessories BS Cbr Mould Body. 24-9198 NA Visit Page
Accessories BS Extension Collar 24-9200 NA Visit Page
Accessories BS Solid Base or Top Plate 24-9204 NA Visit Page
Accessories Cbr Penetration Piston (Adjustable). 24-9183 NA Visit Page
Accessories CBR Penetration Piston Assembly 24-9179 NA Visit Page
Accessories CBR Penetration Transducer 50mm Travel Fitted with 5 Pin Din Plug. 27-1705 NA Visit Page
Accessories CBR Test Accessory Set English 24-9175 NA Visit Page
Accessories CBR Test Accessory Set For Use with GDU or DSU 24-9185 NA Visit Page
Accessories CBR Test Accessory Set Metric 24-9177 NA Visit Page
Accessories Clamped Boss Load Ring - 10.0 kN 78-0460 NA Visit Page
Accessories Clamped Boss Load Ring - 2.0 kN 78-0060 NA Visit Page
Accessories Clamped Boss Load Ring - 28.0 kN 78-0760 NA Visit Page
Accessories Dial Indicator - 1.0" Range 88-4100 NA Visit Page
Accessories Digital Proving Ring, 11,200 lbs (50.0 kN) 78-0864 NA Visit Page
Accessories Digital Proving Ring, 6,000 lbs (28.0 kN) 78-0764 NA Visit Page
Accessories Penetration Dial Gauge BS 24-9186 NA Visit Page
Accessories Penetration Piston 24-9182 NA Visit Page
Accessories Penetration/Swell Dial Gauge ASTM. 24-9184 NA Visit Page

110-120vAC, 60 Hz, 1ø.

Proving Ring, Penetration Piston assembly and penetration dial indicator not included, order separately
