Product code: 47-6175
Category: Core Drilling Sub Category: N/A
Product Group: Compact Core Drill Machine
| Type | Product Name | Product Code | Standard Code | |
|---|---|---|---|---|
| Accessories | Coring Bit for Core Drilling Machine 100 mm dia. x 400 mm length | 47-6175/12 | NA | Visit Page |
| Accessories | Coring Bit for Core Drilling Machine 150 mm dia. x 400 mm length | 47-6175/13 | NA | Visit Page |
| Accessories | Coring Bit for Core Drilling Machine 50 mm dia. x 400 mm length | 47-6175/10 | NA | Visit Page |
| Accessories | Coring Bit for Core Drilling Machine 75 mm dia. x 400 mm length | 47-6175/11 | NA | Visit Page |
EN 12697-27

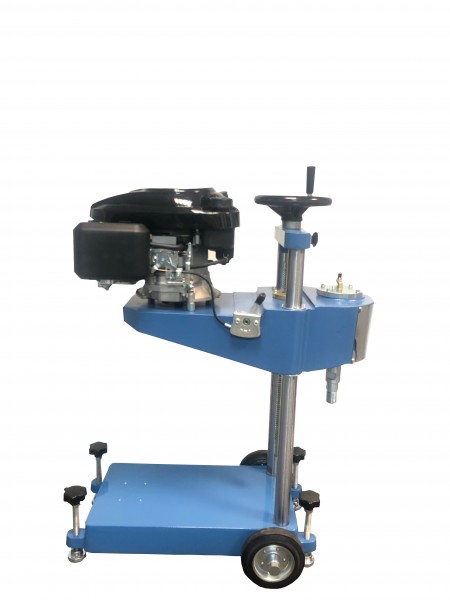

Machine is designed to cut cores up to 150 mm diameter from concrete, asphalt and similar hard construction materials. It comprises a vertical support column which carries the drill head/motor assembly. The motor assembly comprises a 6.5 Hp petrol engine, a ball screw mechanism enables close control of the drilling pressure and rapid return when drilling is completed. A water spraying assembly is mounted on the machine. The complete assembly is supplied on a rigid wheel mounted metal base frame with leveling and fixing facility during the operation.
Coring bits are available to order separately
