Product code: 45-6810/06
Category: Design and Testing of Bituminous Mixtures Sub Category: Marshall Stability and Flow
Product Group: Marshall Load Frames
| Type | Product Name | Product Code | Standard Code | |
|---|---|---|---|---|
| Accessories | 250 Asphalt Probe | 47-0202/10 | NA | Visit Page |
| Accessories | 30 L Heating Bath with Led Display Cover | 45-6550/01 | NA | Visit Page |
| Accessories | 50kN Clamped Boss Load Ring | 78-0860 | NA | Visit Page |
| Accessories | 50kN S-type Load Cell | 27-1559 | NA | Visit Page |
| Accessories | Breaking Head (Marshall) | 45-6850 | NA | Visit Page |
| Accessories | Flow Meter BS/EN | 45-6880 | NA | Visit Page |
• Geared screwjack and motor drive
• Precise speed
• Internal limit switch for both directions of travel
• Easy to use controls

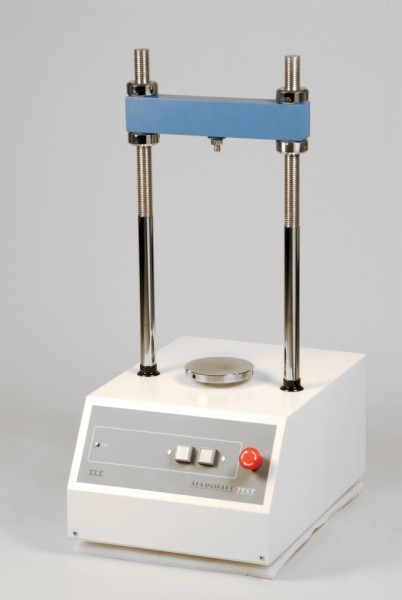

This bench-mounting mechanical load frame is ruggedly constructed to encompass the strain and loads involved with the test. The unit is compact in size and can be quickly installed on a bench top, requiring only a power point. It has been designed for simple operation, is easy to clean and requires minimal maintenance.
**Not available for sale in the USA**
Load frame, 50 kN capacity. Supplied without Breaking Head. For 220 – 240 V AC, 60 Hz, 1 ph.
