34-8544
Category:
Fresh and Hardened Concrete Testing, Cement
Sub Category:
Drying, Shrinkage and Moisture Movement, Soundness, Moulding
Product Group:
Prism Moulds and Inserts, Test Bar Moulds

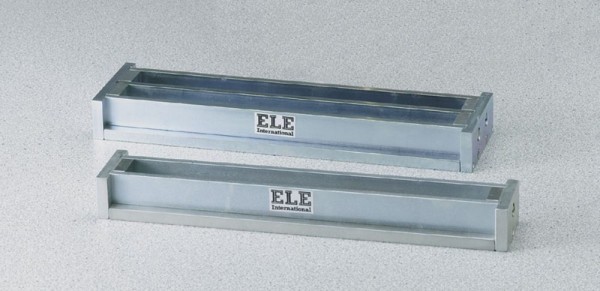

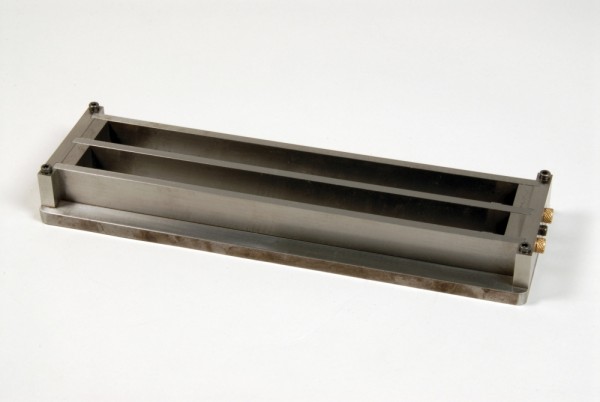

To produce specimens 1 inch square x 11¼ inches long to ASTM C490. The mould is constructed so that the gauge length can be set within ± 0.1 inch limits.
| Description | Two Gang Prism Mould 1" x 11 1/4" |
| Gauge Length | 10” (254 mm) between inner ends of embedded contact points. |
| ASTM C141 | Yes |
| ASTM C151 | Yes |
| ASTM C157 | Yes |
| ASTM C227 | Yes |
| ASTM C490 | Yes |
| ASTM C531 | Yes |
| AASHTO T107 | Yes |
| Construction | Plated steel. |
| Gauge Length | 10” (254 mm) between inner ends of embedded contact points. |
| Weight | Net 20 lbs. (4.3 kg). |
