Soil Strength (Triaxial), Data Logging, Software and Electronic Instrumentation
Sub Category:
Measurement instrumentation, Instrumentation for Triaxial testing
Product Group:
Load Measurement, Load Measurement
•Eliminates effects of piston friction on readings
•Unaffected by cell confining pressures
•Easily installed in triaxial cell
•Supplied complete with calibration certificate and 5-pin DIN type connector for use with GDU

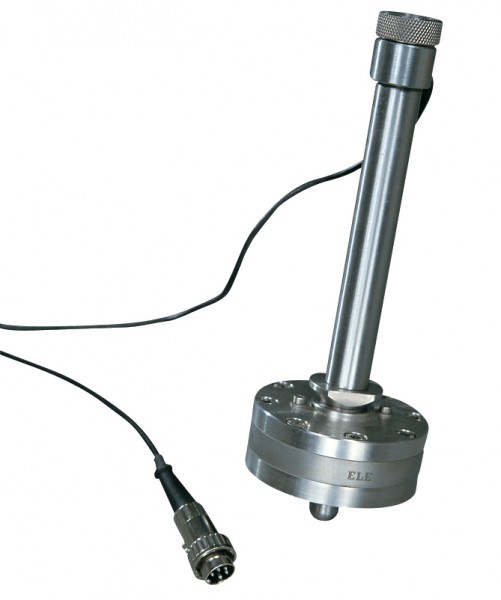

Submersible Load Transducers are used to measure accurately the axial loads applied to triaxial test specimens. Consisting of a load cell and piston assembly these units replace the standard triaxial cell loading piston. A major advantage is that these transducers measure loads directly on top of the specimen. All transducers are supplied complete with a 5-pin DIN type connector and calibration certificate.
| Load device type | Submersible |
| Force Capacity, kN | 10 |
| Description | Submersible load transducer |
| Compensated Temperature Range | 0 - 50 |
| Dimensions | 76 x 50 mm (dia x h) excluding piston and adaptor |
| Overload capacity | 150% |
| Output | 27 mv full range |
| Excitation | 11 V DC (15 V DC max) |
| Non-linearity | 0.1% maximum |
| Hysteresis Deflection | 0.1% maximum 0.05 mm at full load |
| Side force | 50% full scale maximum without effect |
| Connector | 5-pin DIN plug |
| Compensated temperature range | 1 to 50°C |
| Weight g | 850 |
27-1293
Required when using submersible load cells.
27-1573
•Eliminates effects of piston friction on readings•Unaffected by cell confining pressures•Easily installed in triaxial cell•Supplied complete with calibration certificate and 5-pin DIN type connector for use with GDUSubmersible Load Transducers are used to measure accurately the axial loads applied to triaxial test specimens. Consisting of a load cell and piston assembly these units replace the standard triaxial cell loading piston. A major advantage is that these transducers measure loads directly on top of the specimen. All transducers are supplied complete with a 5-pin DIN type connector and calibration certificate.
