88-0110/02
Category:
Laboratory Equipment
Sub Category:
Drying, Muffle Furnaces
Product Group:

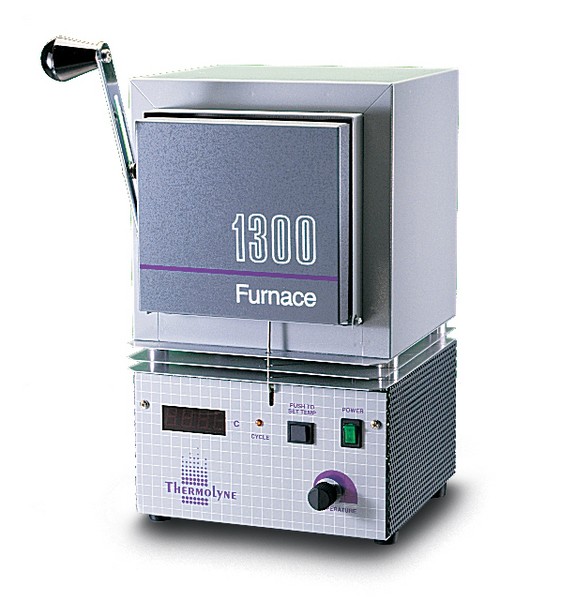

Standard Muffle Furnace
Electrical Ratings:
| Model | Volts | Amps | Watts | Phase | Frequency |
| FB1315M | 120 | 8.8 | 1050 | 1 | 50/60 |
Temperature:
Operating range (continuous): 982°C; (intermittent): 1100°C
Environmental Conditions:
Operating: 17°C - 27°C; 20% - 80% relative humidity, non-condensing. Installation Category II (over-voltage) in accordance with IEC 664. Pollution Degree 2 in accordance with IEC 664. Altitude limit: 2,000 meters.
Storage: -25°C - 65°C; 20% - 80% relative humidity.
| Description | Standard Muffle Furnace |
| Temperature Range, °F | 1799.6 - 2012 |
| Temperature Range | 982°C - 1100°C |
| Heating Time | To 871°C (1,600°F) in approximately 40 minutes. |
| Input Control | Selects from 5 to 100% of full rated input. |
| Heating Elements | Embedded on three sides. |
| Door | Swing-down type with safety switch. |
| Inner Dimensions | 4” w. x 4.5” d. x 3.75” h. (10 x 11 x 9.5 mm). |
| Overall Dimensions | 7.9” w. x 8.5” d. x 13.2” h. (254 x 279 x 368 mm). |
| Weight | Net 15.4 lbs. (7 kg); Shpg. 26 lbs. (12 kg). |
