23-3350
Category:
In-situ Sampling and Preparation
Sub Category:
Hand Boring and Sampling
Product Group:

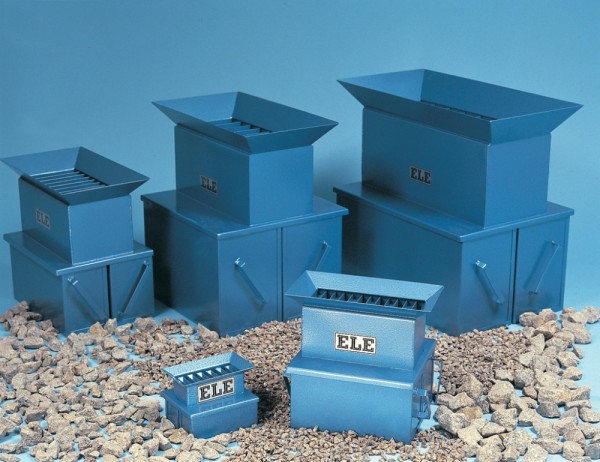

Riffle Boxes (Sample Dividers)
| Recommended max particle size - mm (BS) | 42.5 |
| Recommended max particle size - mm (EN) | 32 |
| Slot width, mm | 64 |
| No. of slots | 8 |
| BS 1377 | Yes |
| BS 1924 | Yes |
| BS 812 | Yes |
| EN 932-1 | Yes |
| Recommended max particle size BS | 42.5 |
| Recommended max particle size EN | 32 |
| Slot width mm | 64 |
| No. of slots | 8 |
| Approx. capactiy kg | 18 |
| Weight kg | 27 |
23-3050
Manufactured from heavy-gauge sheet metal. BS recommended maximum particle size of 8.5 mm. EN recommended maximum particle size of 6.5 mm. Includes 12 slots each with a 13 mm slot width and an overall approximate capacity of 2 litres.
23-3070
Manufactured from heavy-gauge sheet metal. BS recommended maximum particle size of 10 mm. EN recommended maximum particle size of 7.5 mm. Includes 12 slots each with a 15 mm slot width and an overall approximate capacity of 2 litres.
23-3100
Manufactured from heavy-gauge sheet metal. BS recommended maximum particle size of 12.5 mm. EN recommended maximum particle size of 9.5 mm. Includes 10 slots each with a 19 mm slot width and an overall approximate capacity of 4 litres.
23-3150
Manufactured from heavy-gauge sheet metal. BS recommended maximum particle size of 16.5 mm. EN recommended maximum particle size of 12.5 mm. Includes 10 slots each with a 25 mm slot width and an overall approximate capacity of 4 litres.
23-3170
Manufactured from heavy-gauge sheet metal. BS recommended maximum particle size of 20 mm. EN recommended maximum particle size of 15 mm. Includes 10 slots each with a 30 mm slot width and an overall approximate capacity of 4 litres.
23-3200
Manufactured from heavy-gauge sheet metal. BS recommended maximum particle size of 25 mm. EN recommended maximum particle size of 19 mm. Includes 8 slots each with a 38 mm slot width and an overall approximate capacity of 11 litres.
23-3300
Manufactured from heavy-gauge sheet metal. BS recommended maximum particle size of 33 mm. EN recommended maximum particle size of 25 mm. Includes 8 slots each with a 50 mm slot width and an overall approximate capacity of 14 litres.
23-3000
Manufactured from heavy-gauge sheet metal. BS recommended maximum particle size of 4.5 mm. EN recommended maximum particle size of 3.5 mm. Includes 12 slots each with a 7 mm slot width and an overall approximate capacity of 0.3 litres.
