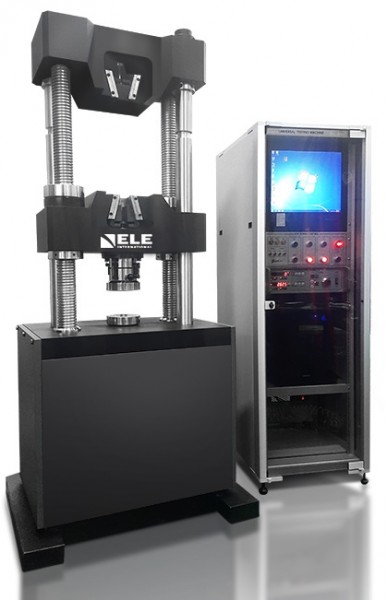

Hydraulic Type Universal Testing Machine 1000 kN

Hydraulic Type Universal Testing Machine 1000 kN

36-2420/05

36-2420/05 is designed to serve the requirements of laboratories, research and development, quality control, manufacturers and educational fields. Plastic, textiles, fabric, wire, cord, rubber, wood etc. are ideal specimens for the 36-2420/05. Test methods such as tensile, compression, bending, peel, shear, puncture etc. are available on this machine.

Features:

• Four to six column hydraulic type UTM
• High precision load cell, class 1 and class 0.5 calibration
• 1/50,000 force resolution
• 0.5~60 mm/min test speed (upgradable option)
• User friendly remote for chuck control
• Overload protection limit sensor
• Emergency power cut off button
• Interchangeable tensile insert grip system

Software features:

• Close loop. Control of load, displacement, extension, stress and strain
• Remote control via software, text execution, data analysis available through RS-232 port
• Software updates and modification installation available via email or remote support
• Diverse and robust configurations for automatic test end options, graph options, PID values, crosshead movement speeds etc
• 15+ different Testing Methods including cyclic, creep, relaxation, keeping etc
• View data and graphs of previously ran tests
• Determine and analyze data points such as yield point, breaking point, modulous etc
• Test report printing options include direct to printer or excel file export
• Test report data can be configured to show only necessary data and to exclude unused data
• Raw data analysis for detailed test data
• Exportable to excel and customizable to show user required data
