45-7500
Category:
Asphalt
Sub Category:
Design and Testing of Bituminous Mixtures, Hveem Stability
Product Group:
Hveem Stabilometer
| Followers | Two included; one 3.985” ± 0.005” diam. x 5-1/2”; one 3.95” ± 0.005” diam. x 5” h. |
| ASTM D1560 | Yes |
| ASTM D2844 | Yes |
| AASHTO T190 | Yes |
| AASHTO T246 | Yes |

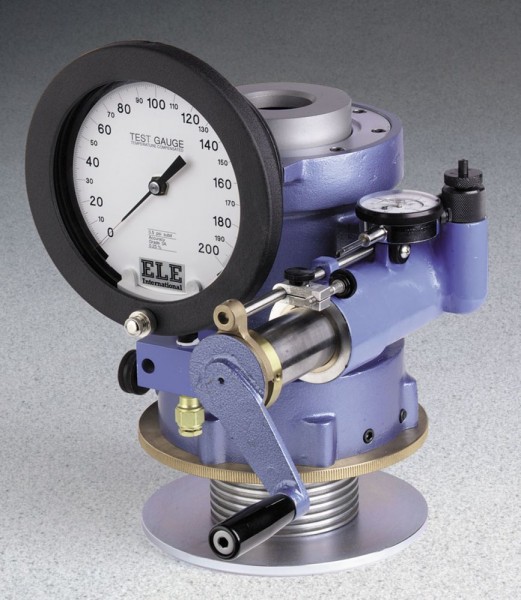

| Description | Hveem Stabilometer - ASTM Type |
| Specimen Size | 4” (101.6 mm) diam. |
| Gauge | 200 psi capacity; 1/4% accuracy. |
| Loading | Diaphragm/piston pump. |
| Shell | Aluminum-Magnesium; adjustable stage. |
| Pressure Fluid | 1 qt. hydraulic fluid (included). |
| Dial Indicator | 1.0” displacement x 0.001” divisions. |
| Followers | Two included; one 3.985” ± 0.005” diam. x 5-1/2”; one 3.95” ± 0.005” diam. x 5” h. |
| Weight | Net 55 lbs. (24.9 kg). |
45-7500/12
ipped 14” (356 mm) long and can be used to make two replacement diaphragms.
45-7505
California Type. Modified version with fixed stage, dual scale gauge (psi/kPa).
45-7510
Texas Type. Modified version with gauge shut-off valve.
