High Temperature Laboratory Furnace 1600°C

« return

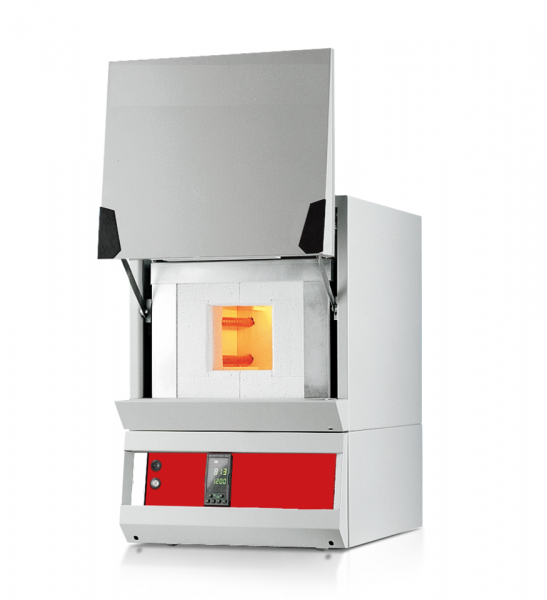

High Temperature Laboratory Furnace 1600°C

83-4180/01

Category:

General

Sub Category:

N/A

Product Group:

Furnaces

Silicon carbide heated high temperature chamber furnace which has a maximum operating temperature of 1600°C.

Robust construction and high quality elements provide rapid heating rates and a long reliable working life

Features:

  • 1600°C maximum operating temperature
  • Controller, with single ramp to set-point & process timer
  • 3 litre chamber volumes
  • Soft closing parallel action door
  • Silicon carbide heating elements provide long life and are able to withstand the stresses of intermittent operation
  • Have a cast alumina hearth
  • Low thermal mass insulation for high energy efficiency
Description High Temperature Laboratory Furnace 1600°C
Max Temp 1600°C
Volume  3 litres
Heat up time  42 mins
Dimensions (Internal)   120 x 120 x 205 mm (H x W x D)
Dimensions (External) 655 x 435 x 610 (905 - door open)
Configuration  Bench top
Max power  4500 W
Holding power 2300 W
Thermocouple type R
Weight  42 kg
download PDF contact us for more information
