37-5526
Category:
Concrete
Sub Category:
Compression Machines, Compression Machines Accessories
Product Group:
Accu-Tek Touch 500 Series, Rapid-Change Flexure Attachments

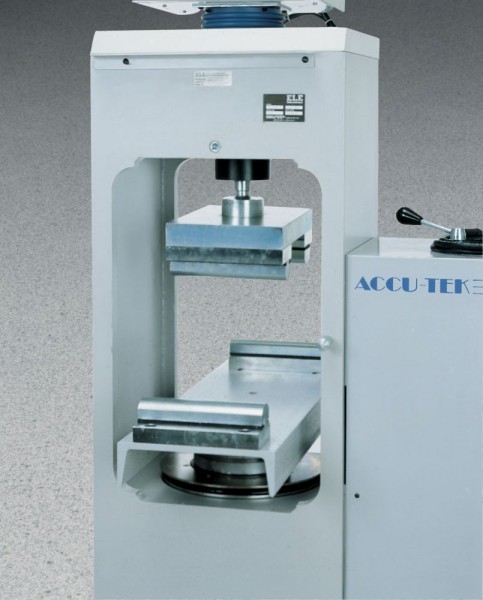

Model 37-5524 Flexure Attachment shown mounted on ACCU-TEK 500 series load frame
| Description | Flexural Attachment - 79kg |
| Upper Head | Uses toe hitch design to mount to upper crosshead. |
| ASTM C78 | Yes |
| ASTM C293 | Yes |
| AASHTO T97 | Yes |
| Loading | Center point or third point. |
| Blocks | Flexible to keep axes normal to specimen surface at compression point. |
| Lower Head | Adjusts for sample lengths of 1212” (305 mm) to 30” (760 mm). |
| Upper Head | Uses toe hitch design to mount to upper crosshead. |
| Weight | Net 175 lbs. (79 kg). |
