45-7580
Category:
Asphalt
Sub Category:
Design and Testing of Bituminous Mixtures, Hveem Stability
Product Group:

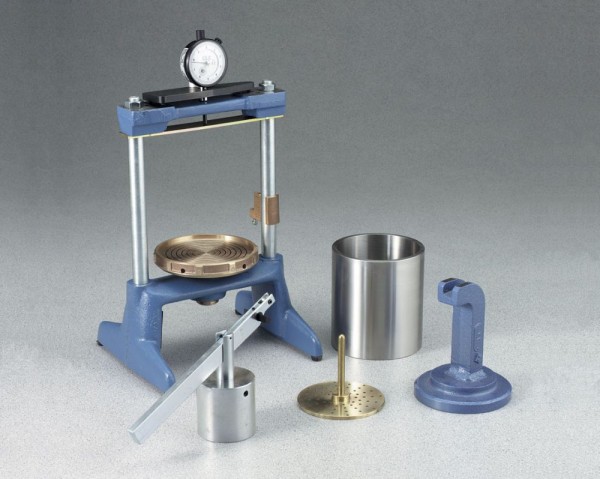

Expansion Pressure Device
| Mould | Hveem type; stainless steel; 4” diam. x 5” h. (101.6 x 127 mm). |
| ASTM D2844 | Yes |
| AASHTO T190 | Yes |
| CA 301 | Yes |
| Description | Expansion Pressure Device |
| Frame Stand | Includes adjustable turntable, height gauge and head |
| Height Gauge | Scribed; sliding. |
| Head | Adjustable, drilled; includes deflection bar and dial indicator adjustment screw. |
| Plate | Perforated brass; circular, with perpendicular stem. |
| Dial Indicator Holder | Triangular, drilled; with dial indicator support and 3 feet. |
| Dial Indicator | 0.2” (7.6 mm) range x 0.0001” (0.002 mm) divisions. |
| Mold | 0.2” (7.6 mm) range x 0.0001” (0.002 mm) divisions. |
| Calibrating Device | Lever-type. |
| Overall Dimensions | 12 ” w. x 12 ” d. x 16” h. (305 x 305 x 406 mm). |
| Weight | Net 35 lbs. (15 .9 kg). |
