25-0503
Category:
Consolidation Apparatus, Soils
Sub Category:
One-Dimensional Consolidation, Manual Consolidation
Product Group:
Table Top Consolidation Apparatus, BS EN consolidation cells and accessories, Pneumatic Consolidation Apparatus, Fixed Ring Consolidation

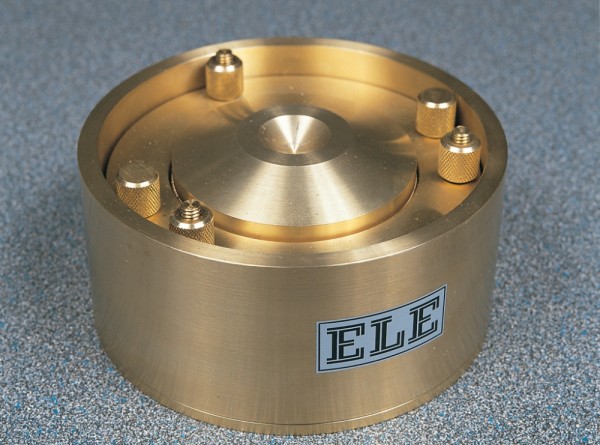

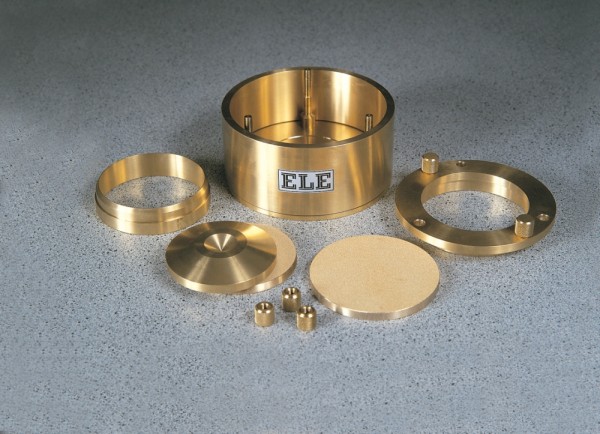

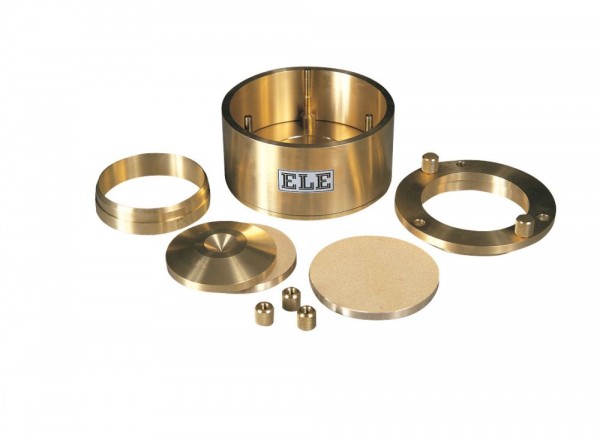

| Description | Consolidation cell 75 mm |
| Sample diameter | 75 mm |
| Stress for 1 kg, kPa | 20 |
| Application | BS/EN 10:1 |
| Specimen Dia | 75 mm |
| Specimen area | 4418 mm² |
| Beam ratio | 9:1 |
| Load kg | 1 |
| Stress | 20 kPa |
| Typical max stress | 3.2 MPa |
| Stress for 1 kg m² | 20 kPa |
The following table shows typical loading of cells giving unit stress when used with the ELE Table Top Consolidation Apparatus
| Application | BS |
| Specimen Diameter | 75 mm |
| Specimen Area | 4418 mm² |
| Beam Ratio | 10:01 |
| Load | 1 kg |
| Stress | 20 kPa |
| Typical Maximum Stress | 3.2 MPa |
| Stress for 1 kg | 20 kPa |
25-0455
- 50 mm dia samples - Integral water reservoir - Supplied with upper and lower porous disc and cutting ring - Manufactured from corrosion resistant materials - Maximum working stress 8 mpa
