46-3310/01
Category:
Bitumen and Tar
Sub Category:
Flash and Fire Point
Product Group:
Cleveland Flash Cup Apparatus

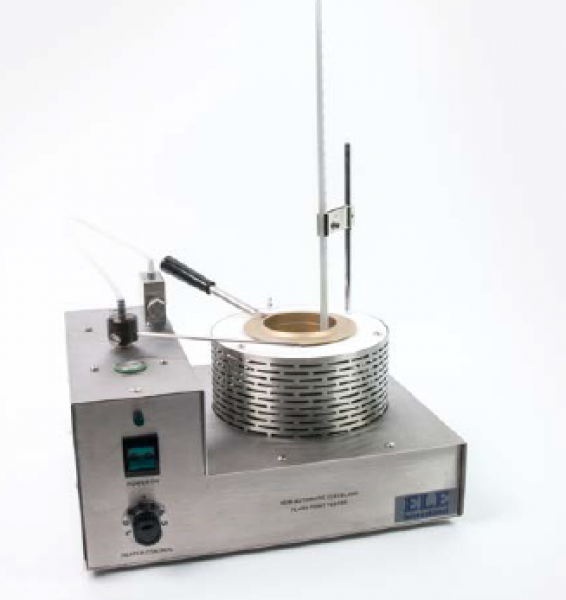

The ELE Semi-Automatic Cleveland Open Cup flashpoint Tester is equipped with an electrically heated cup (with a variable control to set temperature rise rate), a button operated and electrically driven sweep arm and a test flame for use on natural gas. Bench mounted, the unit is incorporated in an easy to clean stainless steel case.
**Not available for sale in the USA**
For 220 - 240 V AC, 50 - 60 Hz, 1 ph.
| Description | Cleveland Flash Cup Apparatus |
| Size (height x width x diameter) cm | 33 x 31 x 29 |
| BS 2000-36 | Yes |
| EN ISO 2592 | Yes |
| ASTM D92 | Yes |
| IP 36 | Yes |
| AASHTO T48 | Yes |
| Temperature Range | Ambient to 400°C |
| Power | 500 W maximum |
| Ramp rate | Variable, manually controlled |
| Voltage | 220/240 V, 50/60 Hz |
| Size (HxWxD) | 33 x 31 x 29 cm |
| Weight | 6.5 kg |
