25-0699
Category:
Soils
Sub Category:
Soil Strength (Triaxial), Pressure Systems
Product Group:

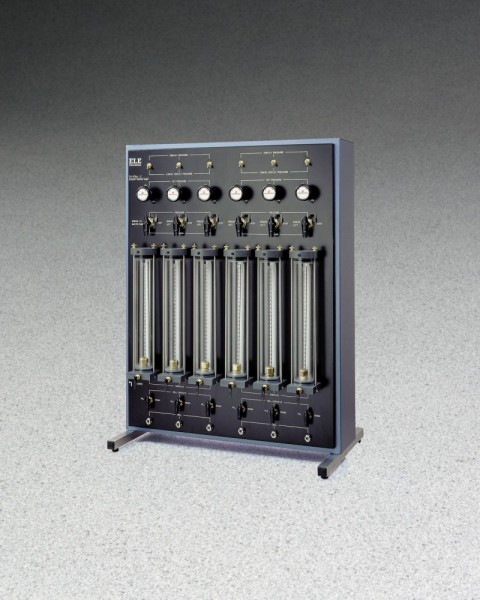

Tri-Flex 2 Master Control Panel, Tri-Flex 2 Auxiliary Control Panel
For two additional triaxial cells
Tri-Flex 2 Master Control Panel required for operation.
| Utilities Required | Water, vacuum, air pressure and drain through connection to the Master Control Panel. |
| ASTM D2850 | Yes |
| ASTM D4767 | Yes |
| ASTM D7181 | Yes |
| ASTM D5084 | Yes |
| AASHTO T296 | Yes |
| AASHTO T297 | Yes |
| Description | Auxiliary Control Panel |
| Measurement Range | 10-4 to 10-10 cm/sec. |
| Burette Pressure Regulators | Six; 2 to 15 0 psi (14 -1,034 kPa). |
| Burette/Annulus | Six; 25 /400 ml capacity with 0.1 ml burette graduations. |
| Utilities Required | Water, vacuum, Dry air pressure and drain through connection to the Master Control Panel. |
| Dimensions | 27” w. x 36-3/4” h. x 7” d. (17” d. With legs); (686 x 933 x 178 mm). |
| Weight | Net 80 lbs. (36.3 kg). |
