25-0480
Category:
Soils
Sub Category:
Manual Consolidation
Product Group:
Fixed Ring Consolidation, Pneumatic Consolidation Apparatus, Table Top Consolidation Apparatus
| Stress for 1 kg, lbf/ft²Stress for 1 kg, lbf/ft²Stress for 1 kg, lbf/ft²Stress for 1 kg, lbf/ft²Stre | 692 |
| ASTM D2435 | Yes |
| ASTM D4546 | Yes |
| AASHTO T216 | Yes |

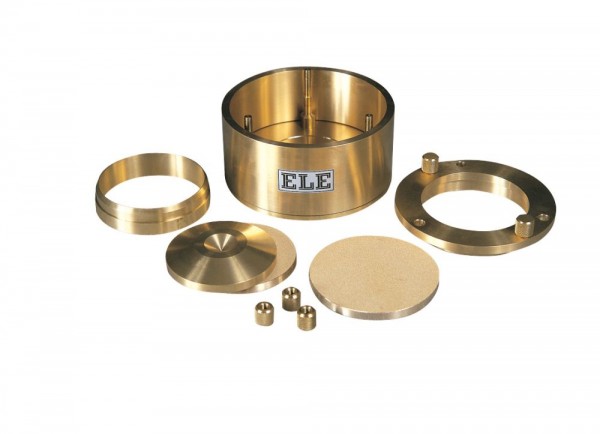

| Description | 2.416″ Fixed Ring Consolidometer |
The following table shows typical loading of cells giving unit stress when used with the ELE Table Top Consolidation Apparatus
| Application | California |
| Specimen Diameter | 2.41 6” |
| Specimen Area | 4.585in² |
| Beam Ratio | 10:01 |
| Load | 1.45 kg |
| Stress | 1000lbf/ft² |
| Typical Maximum Stress | 11 0,720lbf/ft² |
| Stress for 1 kg | 692lbf/ft² |
